Training

Select from the list below

Pressure Transducers Screen Shots:

• 1. Compression Waveform

fig1 compression-waveform-breakdown.jpg

• 3. Intake Ramp

fig3 intake-ramp.jpg

• 2. Exhaust Ramp

fig2 exhaust-ramp.jpg

• 4. Running Compression Good at 80 PSI

fig4 running-compression-good-80.jpg

• 5. Cylinder Good

fig5 cylinder-good.jpg

• 7. Snap Throttle Pressure8. Camshaft Timing Retarded

fig7 snap-throttle-pressure.jpg

• 9. Camshaft Timing Advanced

fig9 camshaft-timing-advanced.jpg

• 11. Active VVT Timing Idle 06 Dodge


• 13. VVT Intake Cam Turned on Volvo

fig13 VVT-Intake-Cam-Turned-on-Vo.jpg

• ​15. Exhaust Camshaft 52° Advanced

fig15 exhaust-camshaft-52-advanced.jpg

• ​17. Intake Valve did not Open

fig17 intake-valve-did-not-open.jpg

• ​19. Running Compression Low at 35 PSI

fig19 running-compression-low-at-35.jpg

• 21. Exhaust Valve Spring Broken in Half

fig21 exhaust-spring-broken-in-half.jpg

• 23. Cranking Exhaust Plateau Magnified

fig23 cranking-exhaust-plateau-magnified

• 25. Cranking Compression Camshaft Timing Off

fig25 cranking-compression-off-1.jpg

• 27. Cranking Vacuum Using 20 H²O After Intake Cleaned with B.G. 211

fig27 cranking-vacuum-using-H20-after-BG

• 29. Cranking Vacuum Waveform Using -30 HG Sensor. Exhaust Valve not opening

fig29 cranking-vacuum-exhaust-valve-not-

• 31. Cranking Vacuum Using -30 HG Sensor. Intake Valve not Opening

fig31 cranking-vacuum-intake-valve-not-o

• 33. Dirty Valve Creating Misfire

fig33 dirty-valve-creating-misfire.jpg

• 35. Green Trace... Yellow Trace...

fig35 green trace yellow trace intake-ma

• 37. Single Cylinder Misfire Zoomed

fig37 single-cylinder-zoomed.jpg

• 39. V8 with 3 Misfires in 1 Firecycle

fig39 v8-3-misfires.jpg

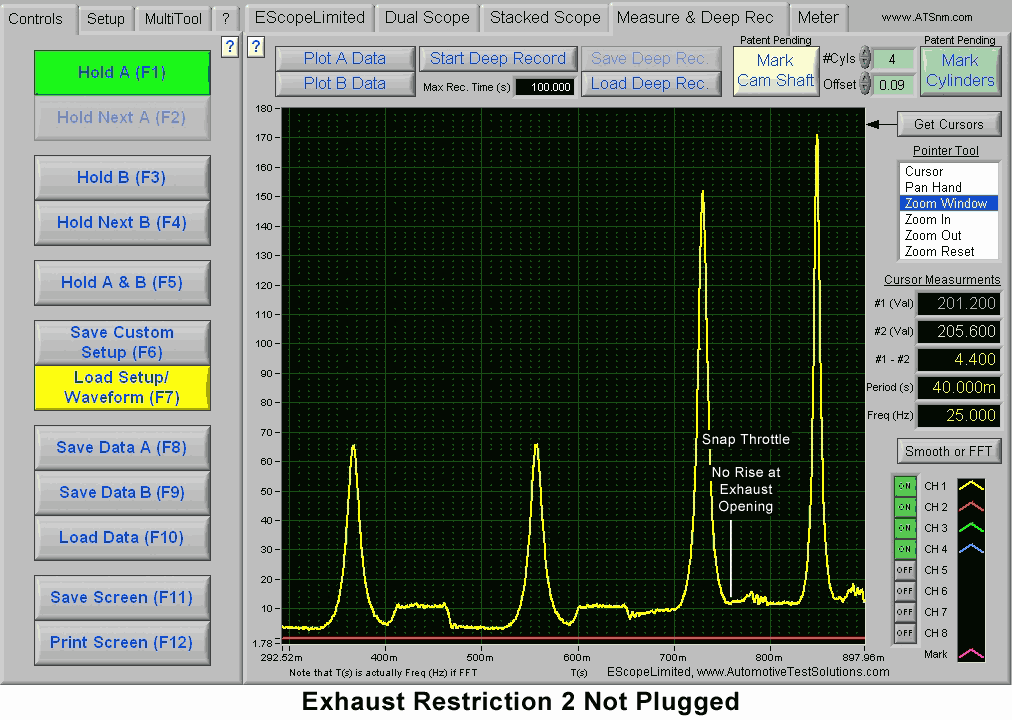

• 41. Exhaust Restriction 2 Not Plugged

fig41 exhaust_restriction2.gif

• 6. Broken Exhaust Valve Spring

fig6 broken-exhaust-valve-spring.jpg

• 8. Camshaft Timing Retarded

fig8 camshaft-timing-retarded.jpg

• 10. Active VVT Timing 1200RPM 06 Dodge

fig10 Active-VVT-at-1200RPM-Dodge.jpg

• 12. VVT Intake Cam Activated at Idle 04 S60 Volvo

fig12 VVT-Intake-Cam-Activated-at.jpg

• 14. Cam Advanced Ford Focus

fig14 compression-ford-focus-cam-.jpg

• 16. Exhaust Valve is not Opening

fig16 exhaust-valve-not-opening.jpg

• 18. Exhaust Valve Spring Broken

fig18 exhaust-valve-spring-broken.jpg

• 20. Exhaust Valve Bad

fig20 exhaust-valve-bad.jpg

• 22. Cranking Compression Good

fig22 cranking-compression-good-1.jpg

• 24. Cranking Compression Intake Valve not Opening

fig24 cranking-compression-not-opening.j

• 26. Cranking Vacuum Using H²O Before Intake was Clean

fig26 cranking-vacuum-using-H20-before.j

• 28. Running Vacuum Waveform Using -30 HG Sensor. Exhaust Valve not Opening

fig28 running-vacuum-exhaust-valve-not-o

• 30. Cranking Vacuum Using H²O Sensor. Exhaust Valve Bad

fig30 cranking-vacuum-exhaust-valve-bad.

• 32. Running Vacuum Using -30 HG Sensor. Intake Manifold Leak

fig32 running-vacuum-manifold-leak.jpg

• 34. Dirty Valve Creating Misfire

fig34 dirty-valve-misfire.jpg

• 36. Single Cylinder Misfire

fig36 single-cylinder-misfire.jpg

• 38. Single Cylinder Miss w/Grid First Cylinder in Firing Order Misfiring

fig38 first-cylinder-misfire.jpg

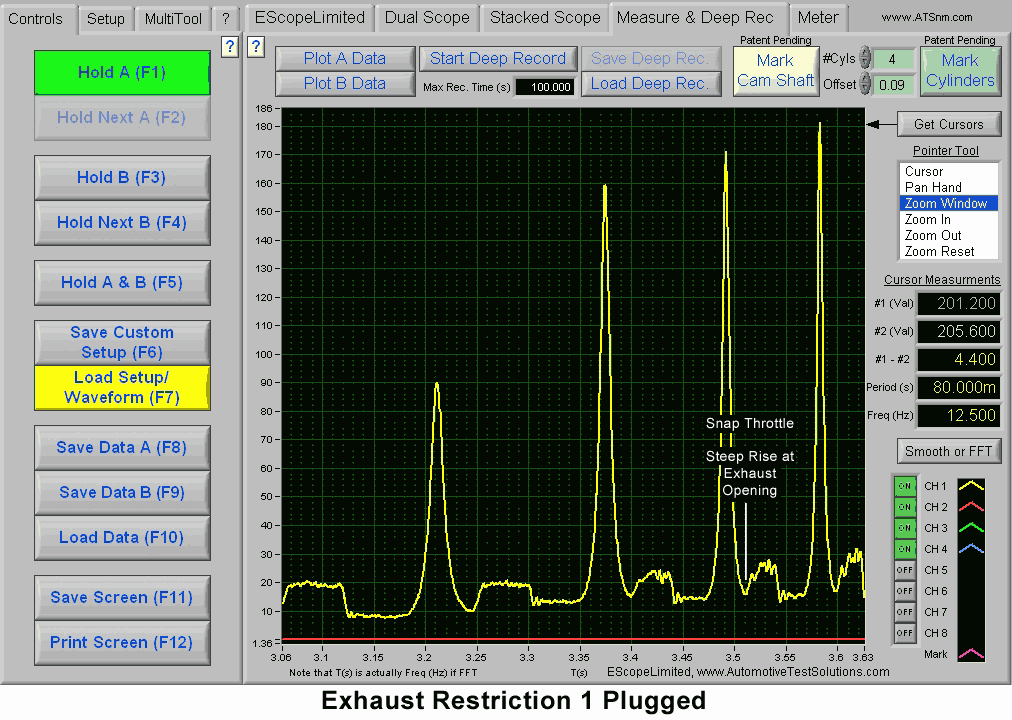

• 40. Exhaust Restriction 1 Plugged

fig40 exhaust_restriction1.gif

• 42. Exhaust Restriction, Yellow Trace - Bank 1 Exhaust Restricted, Red Trace - Bank 2 Exhaust not Restricted

fig42 exhaust_restriction_red_yellow.gif
